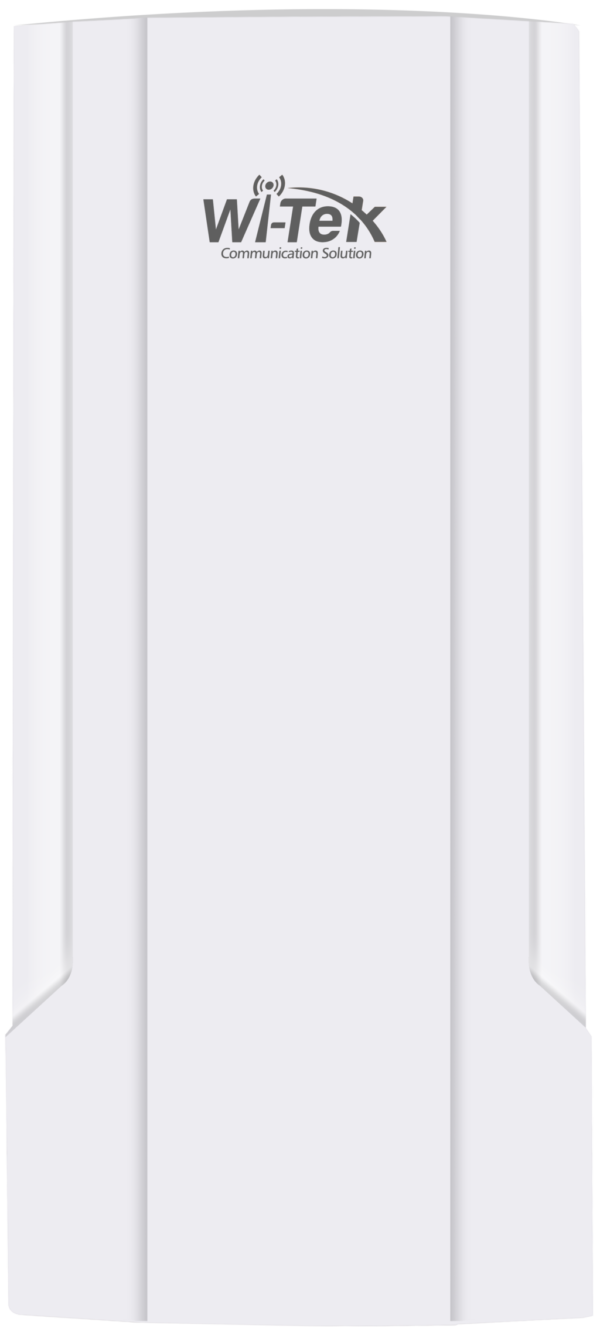

WI-Tek WI-AP315 802.11AC 2.4G&5.8G 750M OUTDOOR WIRELESS AP



MODEL: WI-TEK WI-AP315

11AC 750Mbps Outdoor Access Point Wi-Tek’s WI-AP315 Comply with the latest generation of 2.4G&5G 802.11ac Wi-Fi Technology, data rate can be up to 750Mbps， can access 90 users max for cover 400 meters area , improving overall network performance in high client density environment; With multiple operation mode like Wireless AP, WI-FI , Router , WISP Work with Hardware Controller (root AP)for centralised configuration and management, access into cloud server for advertisement and captive portal authentication for more business value. WI-AP315 is best applied to rural wireless Internet, wireless hot spot and other industrial wireless solutions.

Features

• 2x2MIMO 750Mbps 802.11ac outdoor access point
• 400 Meters LOS wireless cover range, up to 90 users
• Support AP, Router, WISP mode
• Support QVLAN binding multi-SSID
• 2 x 100Mbps Ethernet port(WAN/LAN)
• Captive portal provides one convenient method of authentication for Wi-Fi guests
• Rate limit on per SSID to restrict the bandwidth of each client
• 27dBm High-Power design
• Multi-SSID divides multiple wireless network for different users
• 48V 802.3at PoE supported
• Support hardware controller managed
• IP67 rated, weather and dust sealed
• 3*5dBi inside Omni antenna
• Flexible wall or pole mounting options

Specifications

HARDWARE FEATURES

• Processor: Atheros QCA9531+QCA9887
• Memory: 128MB DDR2 16MB Flash
• Interface 2*10/100M Ethernet Interface
• Power Supply: 48V 802.3af PoE
• Power Consumption: 15W
• Dimensions (HxWxD): 315mm * 135 mm * 62 mm
• Antenna Type: 3*5dBi Omni Antenna
• Protection: 10KV Lightning Protection
• Enclosure: Pole Mounting (Kits included)

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11ac/n/g/b/a
• Frequency: 2.3-2.7GHz & 4.7-6.0GHz
• Wireless Mode: AP, Router, Repeater, Mesh, WISP
• Signal Rate:
  • 2.4GHz: Up to 300Mbps
  • 5GHz: Up to 450Mbps
• Wireless Functions:
  • Multiple SSIDs
  • Enable/Disable Wireless
  • Radio Automatic Channel
  • Assignment Transmit
  • Power Control （Adjust Transmit Power on dBm）
  • QoS(WMM) Band
  • Steering Load Balance
  • Schedule Wireless
  • Statistics based on SSID/AP/Client
• Transmission Power: 27dBm(500mW)

SOFTWARE FEATURES

• Wireless Security:
  • Captive Portal
  • Authentication Access
  • Control Wireless
  • 802.1x Radius
  • Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA- PSK / WPA2-PSK
• Management: WEP management
• Hardware Controller: Yes

OTHERS

• Certification: CE
• Package Contents:
  • 1*AP
  • 1* Pole Mounting Kit included
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
• Environment:
  • Working Temp: 0 ~ 40°C
  • Storage Temp: -40 ~70°C
  • Working Humidity: 10%~95% non- condensing
