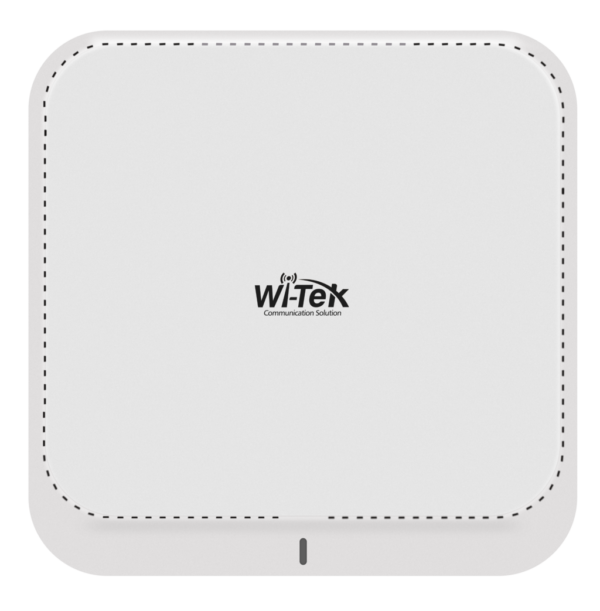

WI-Tek WI-AP218AX 2.4G&5.8G WIFI6 1775MBPS INDOOR WIFI CEILING CLOUD AP



MODEL: WITEK WI-AP218AX

11AX 1800Mbps Indoor Ceiling Mount Cloud Access Point

Features

• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574Mbps on 2.4 GHz and 1201Mbps on 5 GHz totals 1775Mbps Wi-Fi speeds
• OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4×versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously
• Captive portal provides one convenient method of authentication for Wi-Fi guests
• Atheros chipset 1024MB DDR3, 256MB Flash, 500mW High-Power,access 250users
• Support QVLAN binding multi-SSID
• Rate limit on per SSID to restrict the bandwidth of each client
• 27dBm High-Power design
• Multi-SSID divides multiple wireless network for different users
• Load balance ensures large numbers of users have smooth network experiences in high density business networks
• Simple mounting design makes easy to install on any wall or ceiling surface
• 48V PoE Support,2 x Gigabit Port, not include PoE adapter
• Compatible with 802.11 a/b/g/n/ac/ax products
• Support hardware controller managed and free cloud management

Specifications

HARDWARE FEATURES

• Processor: Qualcomm IPQ6000
• Memory: 1024MB DDR3 256MB Flash
• Interface:
  • 2*10/100/1000M
  • Ethernet Interface
• Power Supply: 48V 802.3at PoE
• Power Consumption: 25W
• Dimensions ( H x W x D ): 198mm * 198mm * 32mm
• Antenna Type:
  • Internal Omni 2.4GHz: 3* 5dBi
  • 5GHz: 2*5dBi
• Protection: 6KV Lightning Protection
• Enclosure: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4GHz and 5GHz
• Wireless Mode: AP, Gateway, Repeater
• Signal Rate:
  • 5GHz:Up to 1201Mbps
  • 2.4GHz:Up to 574Mbps
• Wireless Functions
• Multiple SSIDs
• Enable/Disable Wireless
• Radio Automatic Channel
• Assignment Transmit:
  • Power Control （Adjust Transmit Power on dBm）
  • QoS(WMM) Band Steering Load Balance Schedule Wireless Statistics based on SSID/AP/Client
• Transmission Power: 27dBm(500mW)

SOFTWARE FEATURES

• Wireless Security:
  • Captive Portal
  • Authentication Access
  • Control Wireless 802.1x Radius
  • Mac Address Filtering Wireless Isolation
  • Between Clients
  • SSID to VLAN Mapping 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK/WPA3-PSK
• Management: WEB management, Cloud management, Controller management
• Hardware Controller: Yes

OTHERS

• Certification: CE
• Package Contents:
  • 1*AP
  • 1* Pole Mounting Kit included
• System Requirements:
  • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or
  • Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.



• Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment

• Working Temp: 0 ~ 40°C
• Storage Temp: -40 ~70°C
• Working Humidity: 10%~95% noncondensing
